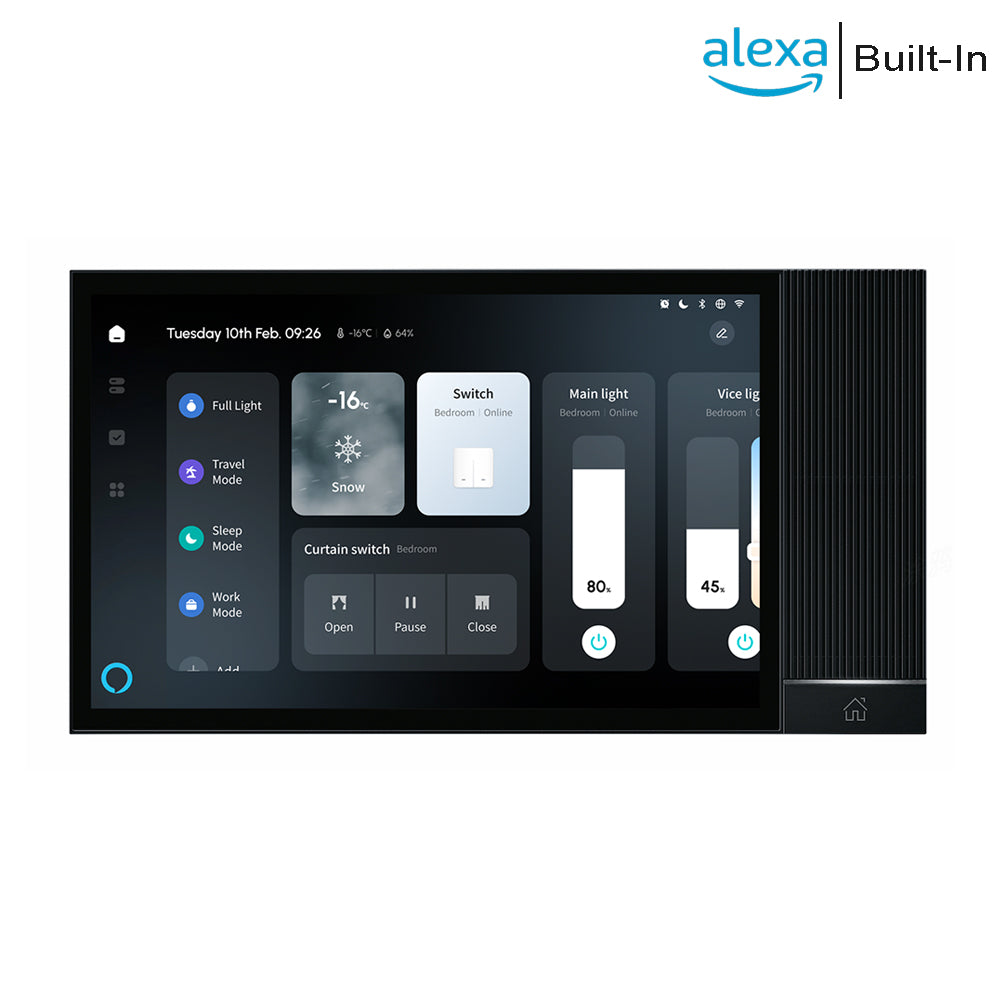

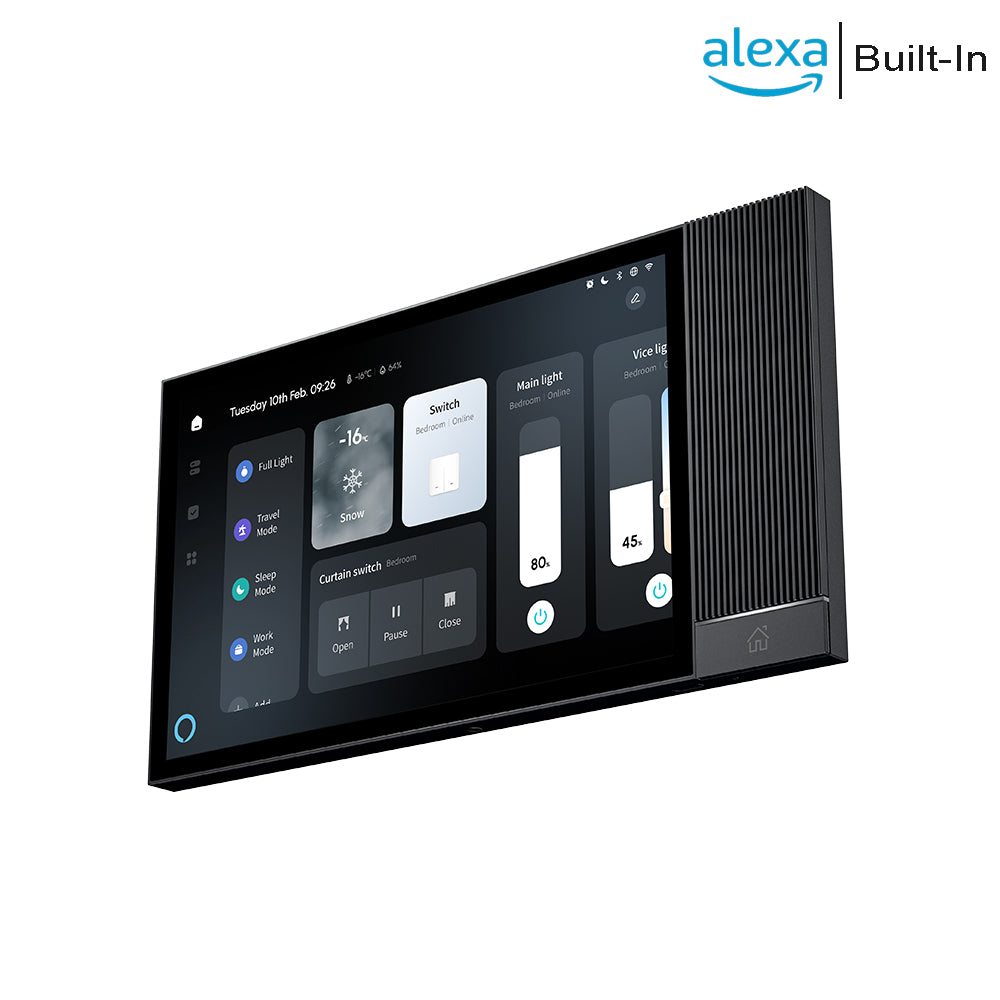

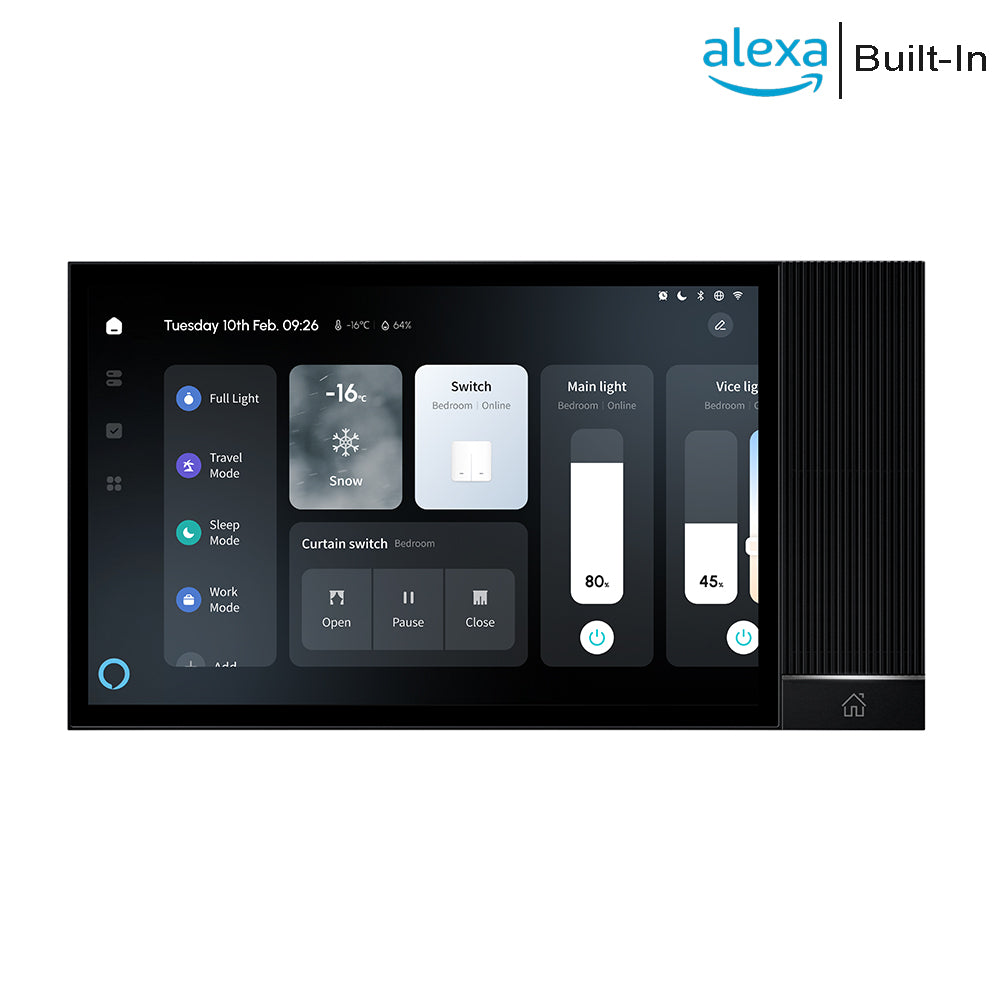

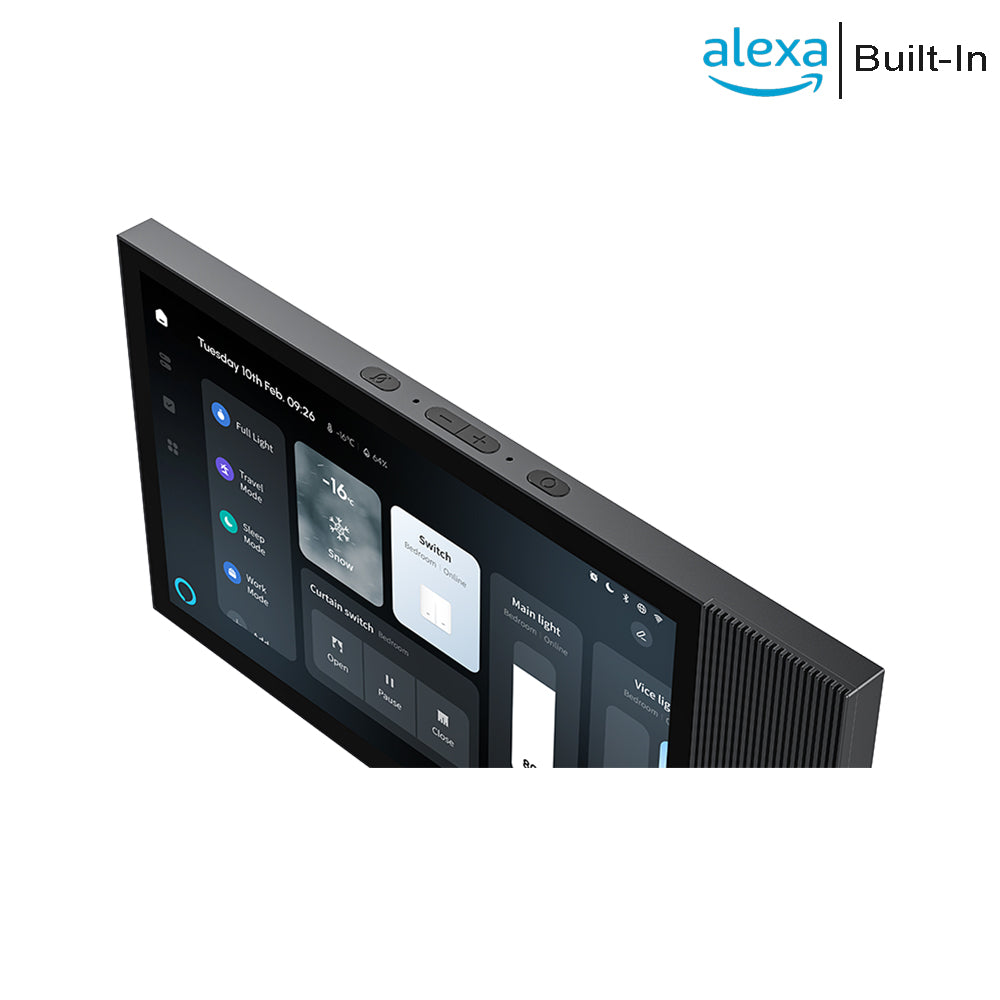

8-Inch Smart Control Panel MAX | Alexa Bluetooth Zigbee Gateway (Android 11)

8-Inch Smart Control Panel MAX | Alexa Bluetooth Zigbee Gateway (Android 11)

The 8-Inch TUYA Smart Control Panel MAX Music System is an advanced, wall-mounted smart home command center designed for modern smart homes and luxury projects. Powered by Android 11, featuring a Bluetooth & Zigbee 3.0 gateway, built-in Alexa, and high-power audio output, this panel combines home automation, voice control, music playback, and intercom compatibility into one elegant device.

It provides a centralized, intuitive interface to control smart lighting, scenes, sensors, audio, and automation across your property.

🔹 Key Features

🔹 Bluetooth & Zigbee Gateway

Built-in Bluetooth + Zigbee 3.0 gateway ensures fast, stable, and efficient communication between smart devices without the need for external hubs.

🔹 8-Inch Touch Screen

Large 8-inch HD touchscreen with clear resolution for smooth navigation and effortless smart home control.

🔹 Android 11 Operating System

Runs on Android 11 with a quad-core high-performance processor for fast response, stability, and long-term support.

🔹 Built-In Alexa Voice Control

Integrated Amazon Alexa allows hands-free control of smart devices, scenes, and music using voice commands.

🔹 Smart Home Automation

Fully compatible with the TUYA Smart ecosystem, enabling centralized control of lights, automation scenes, sensors, and smart devices.

🔹 Music System & Wall Amplifier

Functions as a multi-function wall amplifier, supporting ceiling speakers and Bluetooth audio output for background music and smart audio zones.

🔹 Building Intercom Compatibility

Compatible with building intercom systems, enabling seamless communication within villas, apartments, or buildings.

🔹 Relay & Smart Switch Function

Built-in 2-way relay (200VA MAX) allows direct light control without additional smart switches.

🔹 Technical Specifications

• Product Type: 8-Inch Control Panel MAX (Music System)

• Input Power: 100 ~ 240 VAC (±10%), 50/60Hz

• Screen Size: 8 Inches

• Resolution: 1280 × 800

• CPU: Quad-core high-performance processor

• Memory: 2GB RAM + 16GB Storage

• Operating System: Android 11

• Smart Home Platform: TUYA Smart

• Built-In Zigbee Gateway: Zigbee 3.0

• Built-In Alexa: Yes

• Connectivity Protocols: Wi-Fi, Bluetooth, Zigbee, RS-485

• Network Support: RJ45 (Ethernet)

• Bluetooth Audio Output: Supported

🔹 Audio & Control

• Built-In Speakers: 2 × 2W

• External Speaker Output: 2 × 30W (MAX)

• Relay Output: 200VA MAX

• Relay Control: 2-Way Light Control

• Voice Control: Dual Microphones

🔹 Dimensions & Installation

• Base Size (Not Included): 127.5 × 233.5 × 8 mm

• Base Size (Included): 127.5 × 233.5 × 38 mm

• Installation: Standard 86-sized wall box

🔹 Warranty

🛡 1-Year Warranty from Date of Purchase
Covers manufacturing defects under normal usage conditions.
