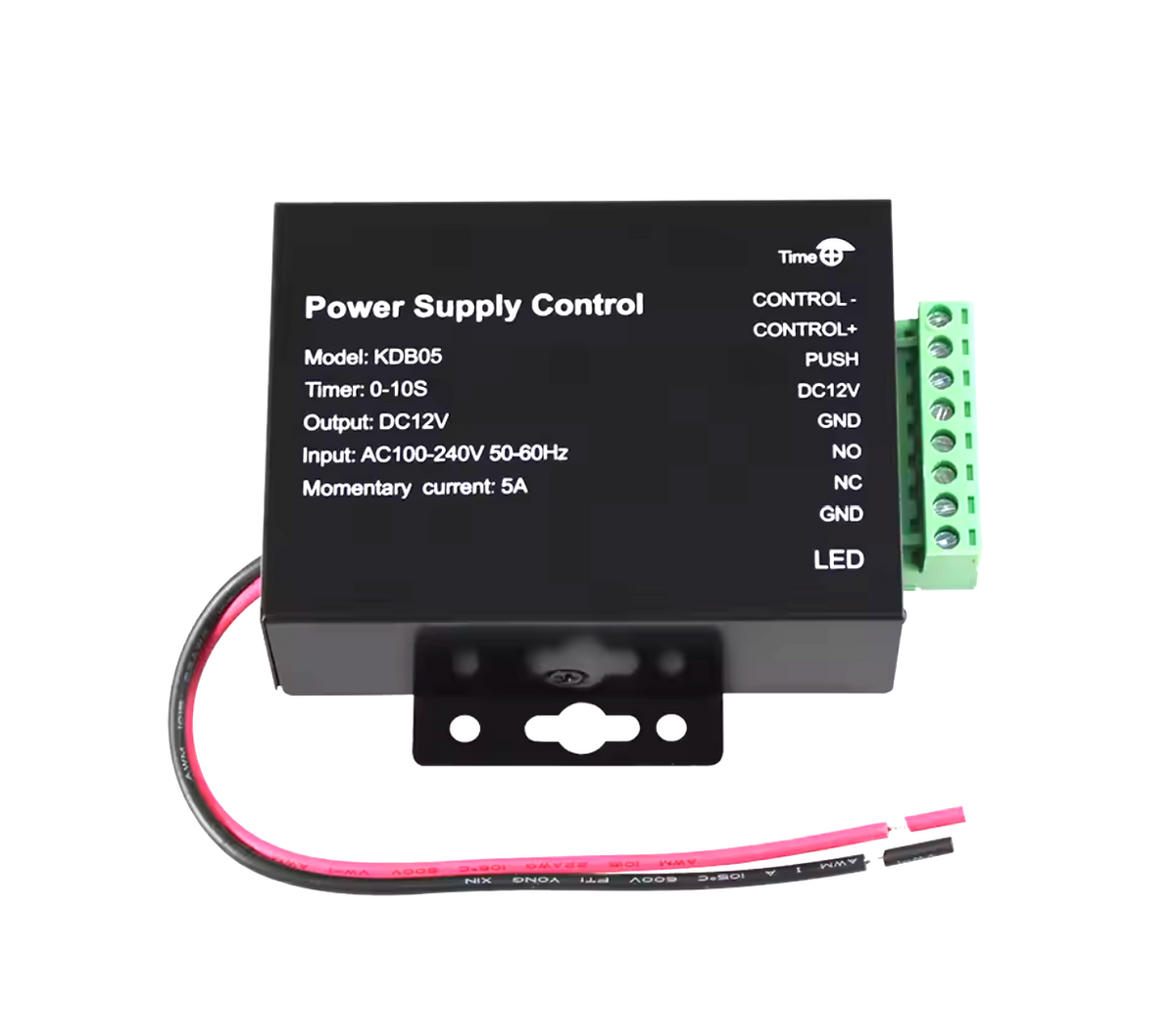

12V 5A Access Control Power Supply

12V 5A Access Control Power Supply – for Electric Locks & Video Intercom

The power source your door access system needs. This 12V access control power supply powers and controls your electric lock directly, making it the ideal partner for our Smart Video Door Phone: press unlock on the monitor, the app, or with a code or IC card, and the power supply releases the lock.

-Powers Up to 2 Electric Locks: The 5A version can control two electric locks, such as your main door and a gate.

-Works with All Lock Types: Selectable NO / NC output for electric strikes, magnetic (E/M) locks and other electric locks.

-Adjustable Unlock Time: Set how long the door stays unlocked, from 0 to 15 seconds.

-Durable Metal Housing: High-quality metal body built for long, reliable operation.

Feature:

– Direct Lock Control: Drives the electric lock directly, reducing the load on your intercom or access controller.

– Cleaner Wiring: Simplifies installation and reduces hidden wiring problems.

– Fail-Safe Mode: Designed for safe operation of access control systems.

– Automatic Protection: Built-in protection function for safe, stable operation.

– Low Power Consumption: Energy efficient with high output.

– Wide Compatibility: Works with video intercoms, access controllers, exit push buttons, electric locks and doorbells.

Specification:

Input Voltage: AC110V–240V, 50/60Hz
Output Voltage: DC12V
Output Current: 5A (instant) / 3.5A (continuous)
Lock Control: Up to 2 electric locks
Output Type: NO / NC selectable
Unlock Delay: 0–15 seconds adjustable
Material: Metal
Working Temperature: -20℃ to +60℃
Working Humidity: ≤90%
Dimensions: 100 × 70 × 32mm
Warranty: 1 Year (from date of purchase)

Warranty:

1 Year warranty from the date of purchase.

Package Included:

12V 5A access control power supply*1

Note: Electric lock, exit button and access controller are not included and are sold separately.
